Kawasaki Versys X 250 300 Vector Template

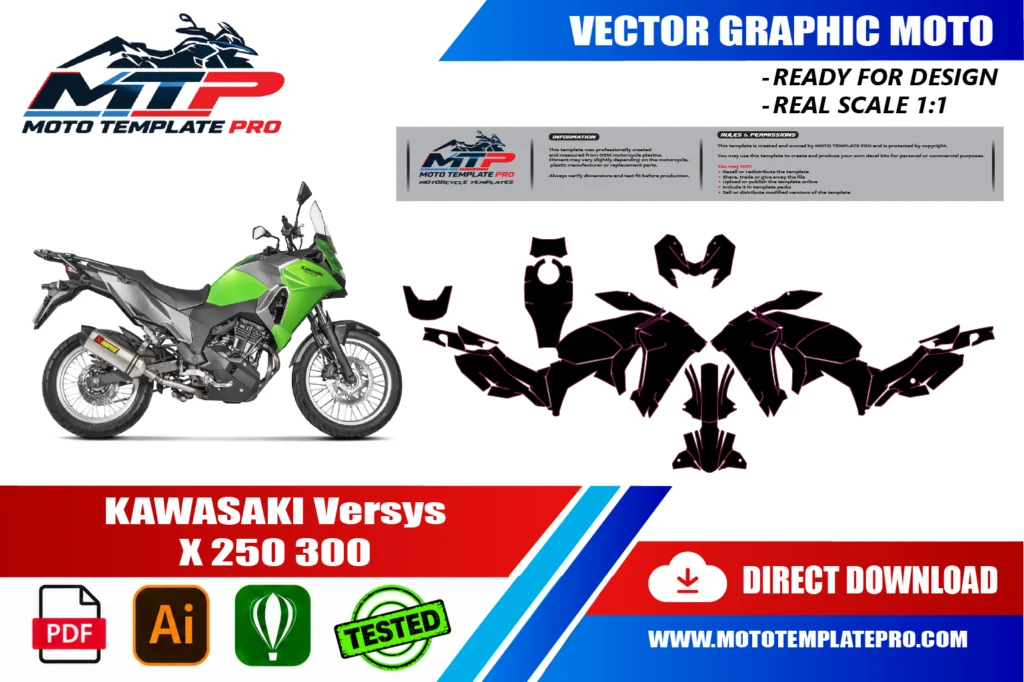

This Kawasaki Versys X 250 300 vector template reproduces the Kawasaki Versys X 250 300 at real scale (1:1) as an editable vector file.

Kawasaki Versys X 250 300 Vector Template: Overview

Use this Kawasaki Versys X 250 300 vector template as an accurate base for decal kits, vinyl wraps, custom liveries and other graphics on the Kawasaki Versys X 250 300. It is made for graphic designers, wrap installers and sticker manufacturers.

The Kawasaki Versys X 250 300 template is made for the smallest adventure-style bikes in Kawasaki’s road range: a slim parallel twin with a tall windscreen, a long-travel stance and a rack at the back. Our outlines follow its body panels at full size, giving designers, wrap installers and sticker makers a precise base for a machine that commutes on weekdays and travels on weekends.

Each file contains editable vector contours of the body panels at real 1:1 scale, in AI, PDF and CorelDRAW formats, with layers grouped by part. It is a starting point for your own design, not a finished artwork ready to print, and not a ready-made decal kit.

Daily use and long trips ask different things from a livery. The Kawasaki Versys X 250 300 is parked in city streets, loaded for a holiday and washed after every wet ride, so its graphics must stay clear, tidy and durable. Accurate outlines let you test those ideas on screen before any vinyl is cut.

The template is provided as an editable vector file, compatible with Adobe Illustrator, PDF and CorelDRAW. It is a starting point for your own design work rather than a finished, ready-to-print graphic: a precise outline of the panels that you can use to position decals, plan a wrap layout or prepare a sticker kit at the correct scale. For background on why vector files are the standard for wrap and decal production, see the Adobe comparison of raster and vector formats.

Versys-X 250 and 300: how the Kawasaki Versys X 250 300 line began

The Versys-X is a small adventure-tourer in the mini-adventure class. According to the sources we checked, both the Versys-X 250 and the Versys-X 300 have been built since the 2017 model year. Kawasaki quietly announced the 250 in early November 2016, and it reached Indonesia by 1 December 2016. A reference summary adds that the bikes are assembled in Rayong, Thailand. The name in this listing, Kawasaki Versys X 250 300, covers both engine sizes, so we explain each.

The 250 uses a 249 cc liquid-cooled parallel twin, and a reference summary says it is the former Ninja 250 engine. The 300 uses a 296 cc parallel twin from the Ninja 300, which Motorcyclist said was retuned to move power into the midrange. Both are described with spoked wheels, a 19-inch front and a 17-inch rear, and a 17-litre fuel tank.

Versions and production window

The 250 was shown in a City version and a Tourer version with a brush guard, auxiliary lights, hand guards and panniers. A German database lists the Tourer for 2017 to 2023, but we did not verify when production ended or which countries received which version. We also did not verify differences between each model year, so check on the actual bike.

For a designer, the practical lesson is simple: treat the Kawasaki Versys X 250 300 as a family of related bikes rather than one fixed shape. Note the engine size, the version and any accessories on your bike before you start, and keep that note with the project files.

Naming the panels of the Kawasaki Versys X 250 300, from beak to rack

Before you design, learn the names. They keep conversations with installers precise. On the Kawasaki Versys X 250 300 the look is adventure-style: a single headlight under a tall windscreen, a slim tank section, narrow side bodywork and a tubular rack at the rear. Catalogues differ, so treat the list below as a glossary of typical parts and check it against the bike in your workshop.

• Front nose or upper cowl around the headlight, with the windscreen above
• Front fender, high above the 19-inch wheel
• Tank covers and side shrouds near the radiator
• Side panels under the seat
• Tail section and rear fender, around the rack mount

Press coverage of the 300 mentions a standard tubular-steel rear rack that doubles as a passenger grab handle. A rack, panniers and a top box can hide part of the tail, so decide what stays visible before you draw anything.

The template provides vector outlines at real 1:1 scale in AI, PDF and CorelDRAW, with layers grouped by part. Hide the nose while you work on the tail, or export one panel for a paper test. We did not verify how the covers are split in every year, so read the product description for the parts that are actually drawn.

A useful habit is to photograph each part of your Kawasaki Versys X 250 300 with a ruler in the frame before you begin. The photos show accessories, repairs and earlier repaints, and they give the installer a reference.

Travel-and-commuter livery ideas for the Kawasaki Versys X 250 300

A small adventure bike lives two lives, and its livery should respect both. In the city it is seen from the side at traffic lights and from behind in a queue. On the road it is seen from the front, on a long straight, with a rider and luggage. Keep the strongest idea near the nose and the tank covers, and give the tail one clear mark.

Directions to try

• Commuter signal: a light grey base with a single bright stripe that climbs the nose and continues over the tank covers, easy to spot in dense traffic.
• Border crossing: sand, olive and a thin orange line, with small route-map textures on the side panels.
• Night rider: dark graphite panels with a pale tone-on-tone chevron, quiet in the city and sharp under street lights.
• Lime and graphite: a two-colour split that echoes the green-and-grey colourways reported for the 2017 bikes.

Think about the stock colour. Sources mention Candy Lime Green with Metallic Graphite Gray, Metallic Graphite Gray with Flat Ebony and, on the 250 Tourer, Candy Burnt Orange, but we did not verify the colours of other years, so look at your own plastics first.

If the Kawasaki Versys X 250 300 carries panniers, repeat one accent colour on the cases instead of copying every detail. Keep fine lines away from the rack and the hand guards, where straps and gloves rub.

Turning the outline into a cut file when the Kawasaki Versys X 250 300 carries luggage

Open the file and rename the layers for your job. Name left and right sides explicitly, because the two sides are not always mirror images once cut-outs, mounts and fixings are considered. Lock finished panels so that a stray click cannot move an outline.

Next, plan how graphics cross the panel boundaries. On the Kawasaki Versys X 250 300 the nose, the tank covers and the side bodywork meet at visible edges, so a continuous line must be drawn to match at each seam. Add registration ticks near the joins and note on the backing which piece goes where.

Extend your artwork beyond each contour by about 3 to 5 mm for bleed, and keep text, numbers and logos away from edges, screws and the screen mounts. Print a paper copy at 100 percent, never fit to page, tape it to the bike and look from several angles.

Allow time for a dry fit. Lay each finished sheet on its panel without removing the backing, then add the luggage and look again. A rack or a pannier changes what the viewer sees of the tail, and a dry fit often catches a mirrored piece or a mislabelled side before it becomes waste.

Agree the colour workflow with your print partner: CMYK with the right profile, text converted to outlines and a separate colour for the cut path. Export a flattened proof for the client and keep a layered master with notes in a hidden layer.

Weatherproof vinyl for a Kawasaki Versys X 250 300 that rides in every weather

A commuter-tourer sees rain, road spray, insects, sun and frequent washing. Choose quality cast vinyl for the curved parts such as the nose and the fender, and keep calendered film for flatter areas like a straight stripe on a side panel. Follow the manufacturer’s datasheet for any film.

Protect the print with a UV-resistant overlaminate. Satin is a sensible choice for the Kawasaki Versys X 250 300 because it hides fine scratches better than gloss and keeps colours livelier than flat matt. Edges that face the wind on the nose are the weakest part of any wrap, so seal them well.

Clean the plastic with isopropyl alcohol and avoid silicone products. Position the piece with tape hinges and squeegee from the centre outwards, using gentle heat only where the film must stretch. Keep vinyl away from lamp lenses, sensors and the hot zones near the radiator and exhaust, and test adhesion on a hidden spot first.

Wrap edges around the rim when the shape allows, and let the adhesive bond for a full day before the first wash or the first rain. Avoid pressure washers close to edges, and check the edges again after the first long trip, because a small lifted corner is easy to press down early.

Mistakes we see on small adventure-tourer kits

Most failures appear first at edges and seams. The commonest mistake is designing for photographs instead of motorways: fine lines and tiny text look perfect on screen and vanish after the first wet ride. On the Kawasaki Versys X 250 300, use bold shapes and keep small details for flat, protected areas.

• Covering a lens, reflector or sensor
• Ignoring the screen mounts and brackets
• Placing logos over screws and clips
• Letting a stripe cross a panel gap
• Applying film to a cold or dusty panel
• Scaling the file in the print dialog

The second mistake is forgetting the luggage. A top box and panniers hide the tail, so a design that relies on a big mark there will disappear on the road. Put the key element on the nose and the tank covers, and test the look with the cases fitted.

A third is trusting a photograph of someone else’s bike. Panels may carry accessories or an altered shape. Compare the Kawasaki Versys X 250 300 outline with your own bike, with a measurement, before you cut a metre of vinyl.

One more habit separates tidy results from messy ones: start each panel from a central anchor line and chase air bubbles towards an edge. Patient application beats force every time.

250, 300, City or Tourer? Choosing within the Kawasaki Versys X 250 300 range

The two engine sizes share a family look, but the bikes are not identical. The 300 is described with 39.3 hp and a wet weight of 175 kg, while the 250 is described with a smaller version of the same layout. Those figures say nothing about the plastics, and we did not verify whether the 250 and the 300 share every body panel.

The Tourer adds a brush guard with auxiliary lights, hand guards and panniers, while the City version has none of these. Accessories change what you can see and what you can cover, so compare your own bike with the outline before you plan the artwork. The Kawasaki Versys X 250 300 outlines are a base, not a promise of a fit for every version.

Check the nose, the windscreen area, the tank covers and the tail directly on your bike. Take straight-on photographs with a ruler beside each panel. Colours, graphics and equipment vary by year and market, and aftermarket parts are common on travel bikes, so ask whether yours are original.

Compatibility can vary with the exact variant, year and parts fitted. Measure first, order afterwards, and send us a photo with the model year if you hesitate.

How This Template Is Built

This Kawasaki Versys X 250 300 vector template is rebuilt as a fully editable vector outline from the real panel proportions of the Kawasaki Versys X 250 300, rather than a rough tracing or a stretched photo. Working at true 1:1 scale means printers and installers can output panels straight from the file without rescaling, which keeps stripes, sponsor logos and pinstripes aligned exactly where they were designed.

Because the panel outlines are kept as separate, editable shapes, you can turn individual sections on or off while you design and export only the panels you actually need for production. On a vehicle of this kind (adventure or dual-sport bike), the typical panel groups include the tank shrouds, front fender, side panels and tail section. Before printing, always measure a panel on the real vehicle against the file, since small production differences can happen and a quick check avoids a costly reprint.

What You Can Use This Template For

• Adventure bike decal kits
• Tank and panel graphics
• Full or partial vinyl wrap layouts
• Expedition and sponsor branding
• Custom liveries

This Kawasaki Versys X 250 300 vector template suits riders planning a tank, panel or full wrap upgrade, wrap shops quoting jobs sight-unseen, and sticker manufacturers who need a reliable base file instead of starting from photographs. Because the panel outlines are separated rather than merged into one flattened shape, you can isolate a single panel and export only what you need, which saves time when a project only touches part of the vehicle.

Files Included and How to Use Them

After purchase you get an instant digital download of the Kawasaki Versys X 250 300 vector template in three formats. A typical workflow takes only a few steps:

1. Download the file from your account or order email right after payment.
2. Open the AI, PDF or CorelDRAW version in your vector software.
3. Hide the panels you do not need and place your graphics, logos and colors on the rest.
4. Print one test panel at 1:1 and check it against the real vehicle.
5. Export the final artwork for your printer or cutter.

Printing, Scale and File Notes

Before you print this Kawasaki Versys X 250 300 vector template, remember that it is built at real 1:1 scale, so the safest workflow is to print a single test panel first and lay it against the actual Kawasaki Versys X 250 300 before committing to a full print run. A short test print is cheap insurance against a wasted roll of vinyl, especially around curved sections.

The vector layers are grouped by panel, which keeps the file manageable if you only need a subset of the panels, useful for a partial wrap, a single panel graphic or a small decal pack. If you run into a fitment question that is not covered here, reach out before you print. We would rather answer a quick question in advance than have you reprint a panel.
